What We Do

Products

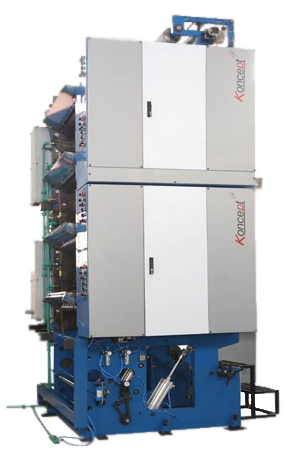

Koncept ( 4+4 Printing With Underneath Reel Stand)

Innovative concept based sturdy tower to print both sides four colors with underneath in built reel stand in this offset printing presses. Staggered blanket cylinders to achieve optimum stability in color registration.

Go To Details

Koncept ( 4+4 Printing With Underneath Reel Stand) - Web Offset Printing Machine

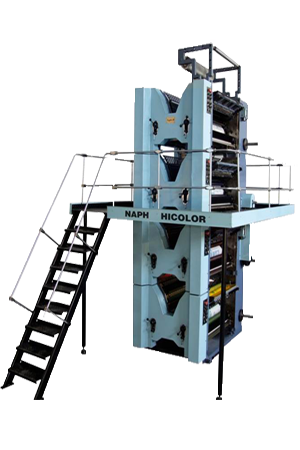

4 Hi Tower (4 Color Offset Printing Machine)

Robust tower to print one web both sides in 4 colors. Staggered blanket cylinders to achieve optimum stability in color registration. Blanket cylinders have hardened eccentrics with housing, eliminating the wear and tear of main frames.

Go To Details

4 Hi Tower (4 Color Offset Printing Machine) - Web Offset Printing Machine

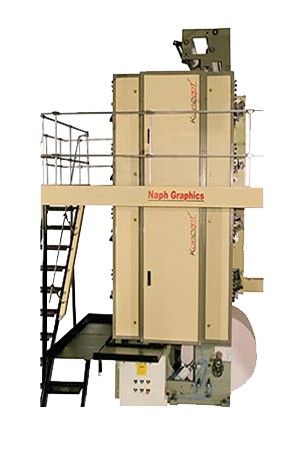

Koncept Penta ( 4+1 Printing Web Offset Presses)

Sturdy compact unit designed to print one side4 colore and back site single color. This penta unit come with underneath reel stand which makes it ultimate choice. Saves a huge space and reduces web length which ultimately responsible for less print wastage.

Go To Details

Koncept Penta ( 4+1 Printing Web Offset Presses) - Web Offset Printing Machine

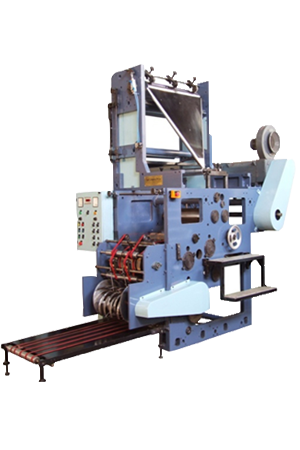

Folder

High speed quarter folder attachment for on line 1/4 th fold equipped with in line creasing system for perfection in quarter folding even at high speeds parallel perforations on folded edge of the section to release trapped air just one clutch to engage and disengage quarter folder

Go To Details

Folder - Web Offset Printing Machine

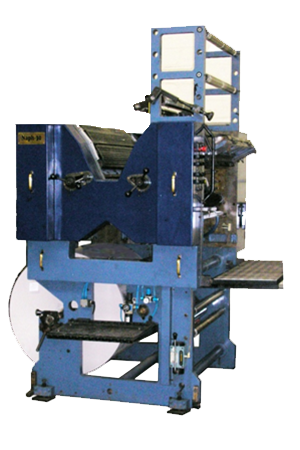

Mono Unit (Single Color Offset Printing Press)

Unit with underneath inbuilt reel stand capable to print one web both sides single color. Vertical short web lead, comfortable operations and easy to operate. All solid steel forged plate and blanket cylinders dynamically balanced. High capacity, swing down ink fountain.

Go To Details

Mono Unit (Single Color Offset Printing Press) - Web Offset Printing Machine

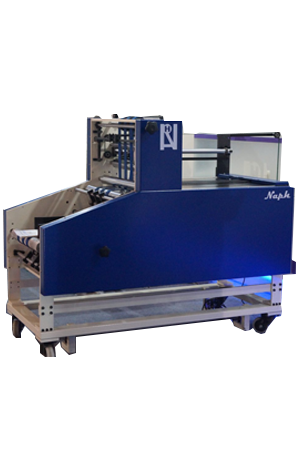

Stacker

Log type delivery for hassle- free bundling of printed signatures. Robust, tailor made, semi-automatic machine which can be attached to folder of any make/model. Option to design as per required parameters like height or length or 90 degrees.

Go To Details

Stacker - Web Offset Printing Machine

Slitter Rewinder Machines


Naph Machines

Unique Selling Proposition (USP)

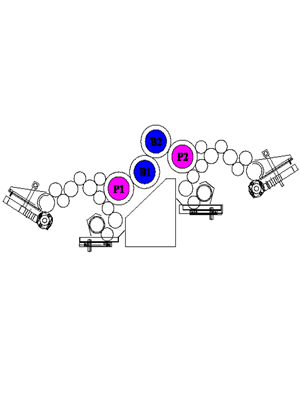

Staggered Blanket Cylinder

Continuous firm grip of the web
Optimum color registration stability

Staggered Blanket Cylinder - Web Offset Printing Machine

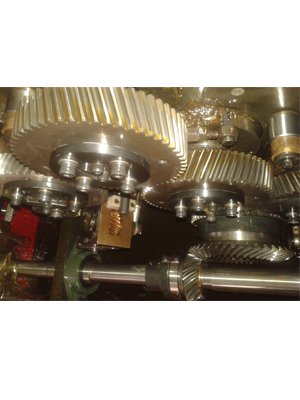

Helical Gears

All plate and blanket cylinders rolls with hardened ground helical gears for better power transmission.

Helical Gears - Web Offset Printing Machine

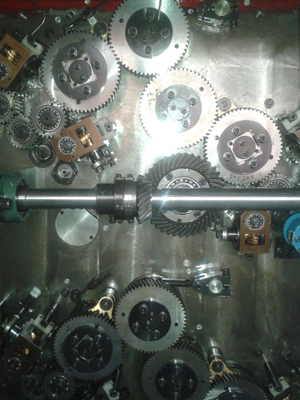

Two Frame Tower

Generally a tower consists of 4 stack units where as in NAPH – Koncept Tower, one frame constitute two stacks. This makes tower more sturdy and results in much more accuracy in machining

Two Frame Tower - Web Offset Printing Machine

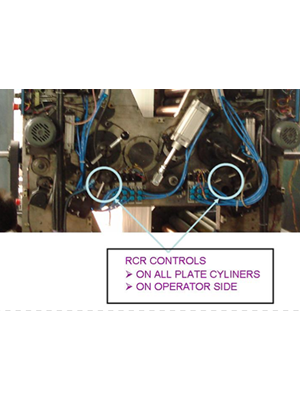

Circumferential (RCR) Adjustment

On all 8 plate cylinders
On the operator side
Quick & easy to achieve color registration

Circumferential (RCR) Adjustment - Web Offset Printing Machine

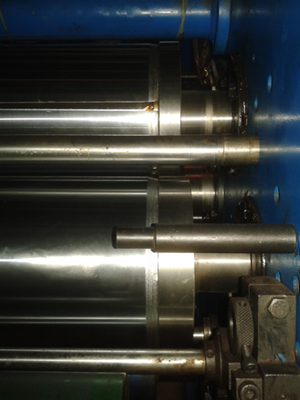

Hardened Ground Bearers

Additional aid for true rolling of printing cylinders for better dot transfer and also for easy & accurate impression settings

Hardened Ground Bearers - Web Offset Printing Machine

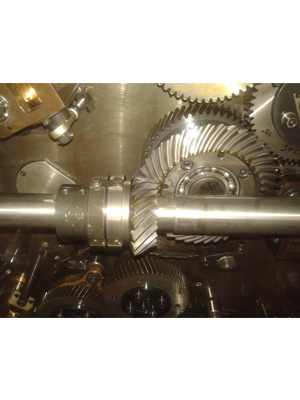

Overload Safety Keys

Over load shear keys provided on each and every drive shaft to avoid major damage to the mechanical components of the machine

Overload Safety Keys - Web Offset Printing Machine

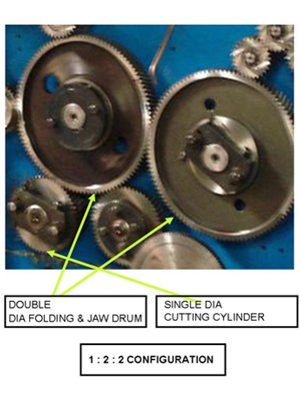

Heavy Duty Jaw Type Three Cylinder Folder

Based on 2:2:1 Principle

Heavy Duty Jaw Type Three Cylinder Folder - Web Offset Printing Machine

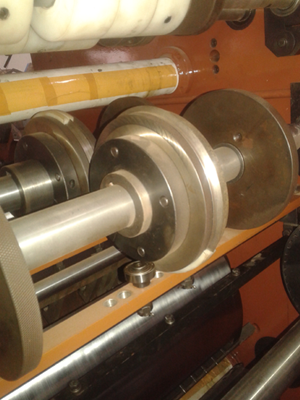

High Speed Quarter Folder

On line male – female creasing in folder for perfection of quarter fold even at high speed

High Speed Quarter Folder - Web Offset Printing Machine

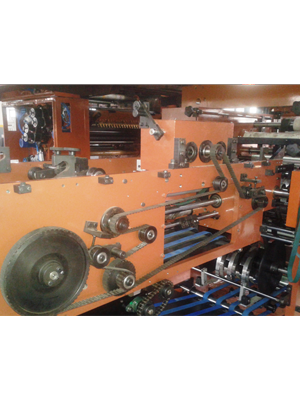

Single Clutch Quarter Folder On-Off

Single clutch engage – disengage make it possible to change over from half fold jobs to quarter folded jobs and from quarter folder jobs to half fold quicker. It takes hardly few seconds to engage or disengage quarter folder

Single Clutch Quarter Folder On-Off - Web Offset Printing Machine
